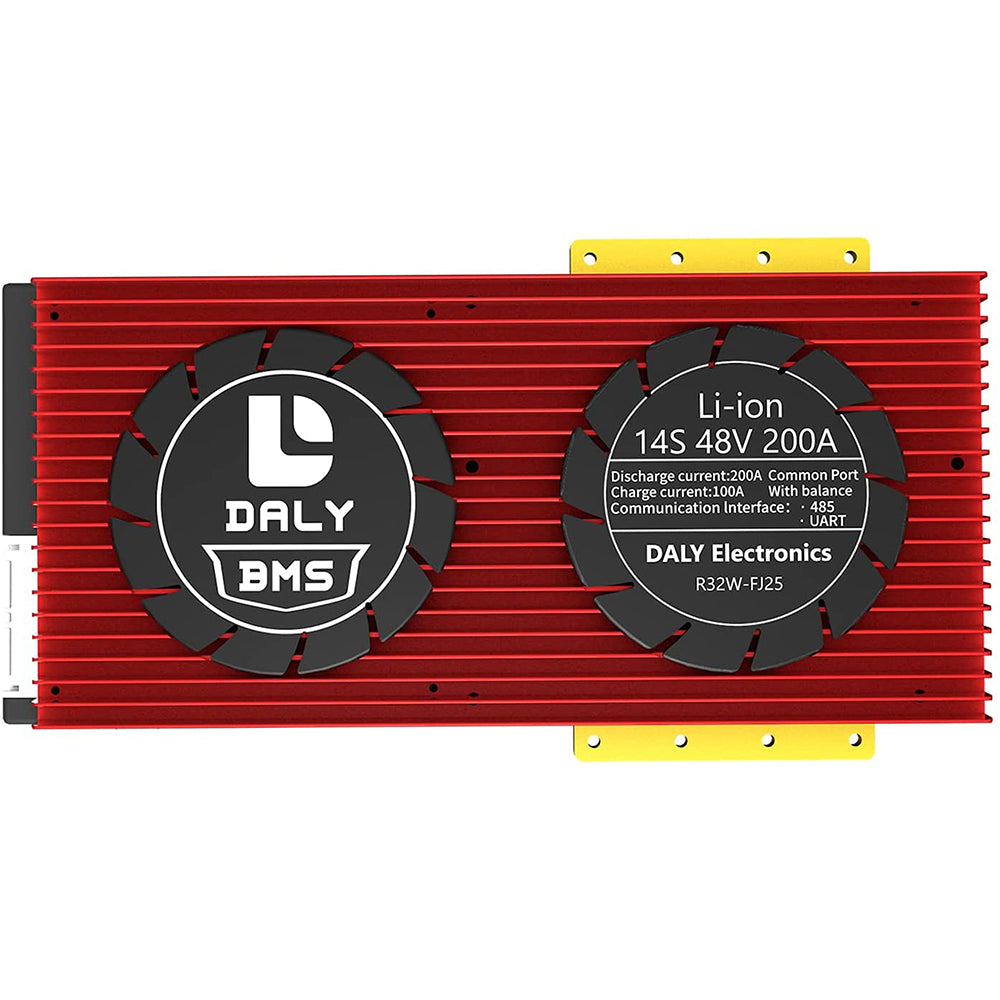

Daly smart bms Li-ion 14S 48V 200A bluetooth BMS board 32130221
- For our smart bms, when the first use, need to activate first, then B-P-conductive, BMS can work well.
Method ①: buy the power board and there is an activation switch on the board and click the button.
Method ②: Charge activation, B-Line must be the total negative pole of the battery pack when
- 3S ~ 5S, J series (10J, 16J) BMS only can be activated by this way.
- Touchable screen LCD and bluetooth function won't be working / exist at the same BMS! !!! You can only choose one of them.

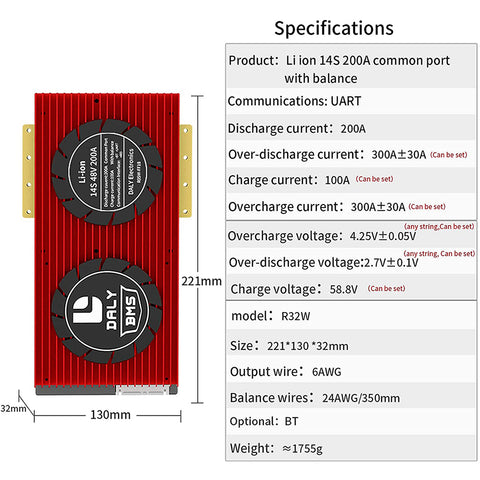

- Main Features Description:
- Over-charge protection: Yes
- Over-discharge protection: Yes
- Over-current protection: Yes
- Temperature protection: Yes
- Disconnect protection: Yes
- Short circuit protection: Yes
- Short circuit protect recover: Yes
- Balance function: yes
- weight: 1.75 kg
- BMS was made by high quality Mos and IC imported. Keep your battery long cycle life time.
- Use top quality (A-level) protective integrated circuit IC, from the solution of Japan.
- Extreme low power consumption. The consumption of the whole device is less than 50uA.
- PCB use high anti-corrosion, high water resistance, high impedance ESD compliant plating.
- UART: UART is Universal Asynchronous Receiver / Transmitter, it transforms the data transmitted between serial communication and parallel communication. As a chip to convert parallel input signals into serial signals, UART is usually integrated into other communication interfaces. UART cable can support connection bms between PC and you can set the parameters through PC screen.

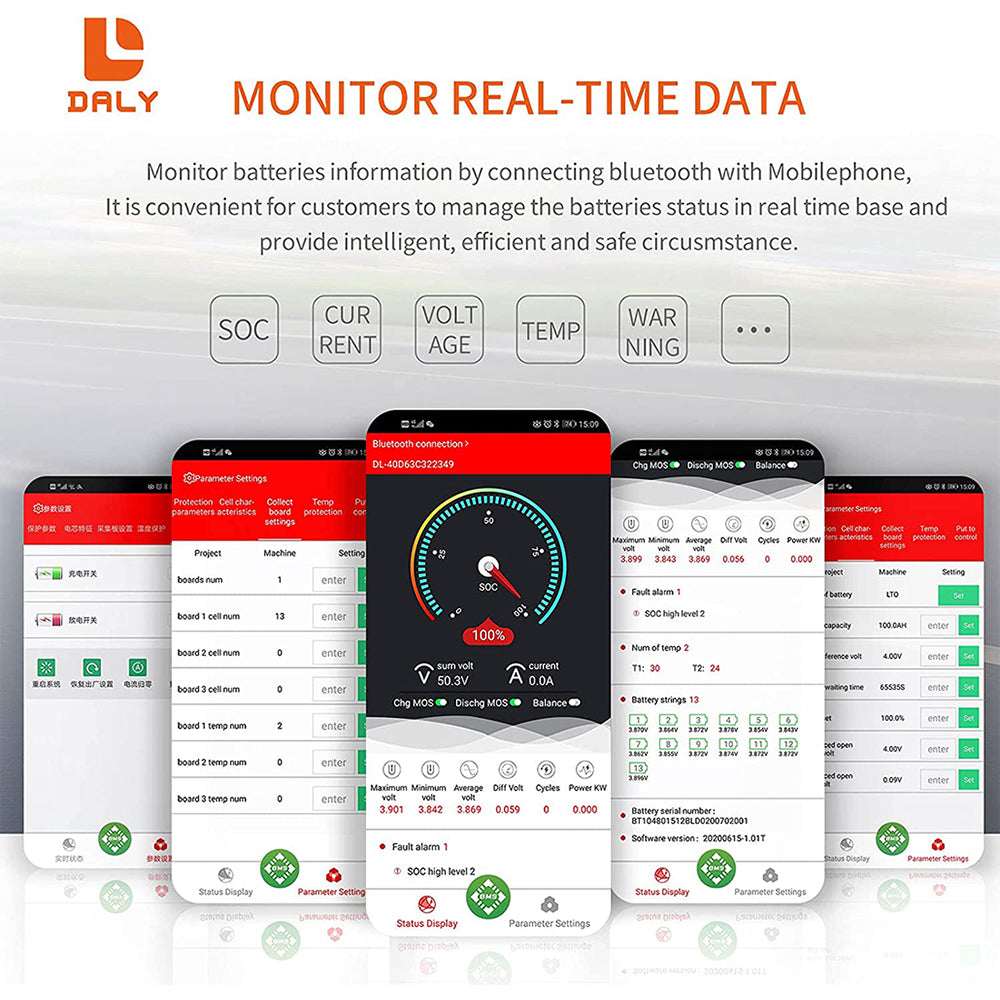

- Bluetooth module: available to connect with Android and IOS App and can check the battery status in real time through mobile phone.
