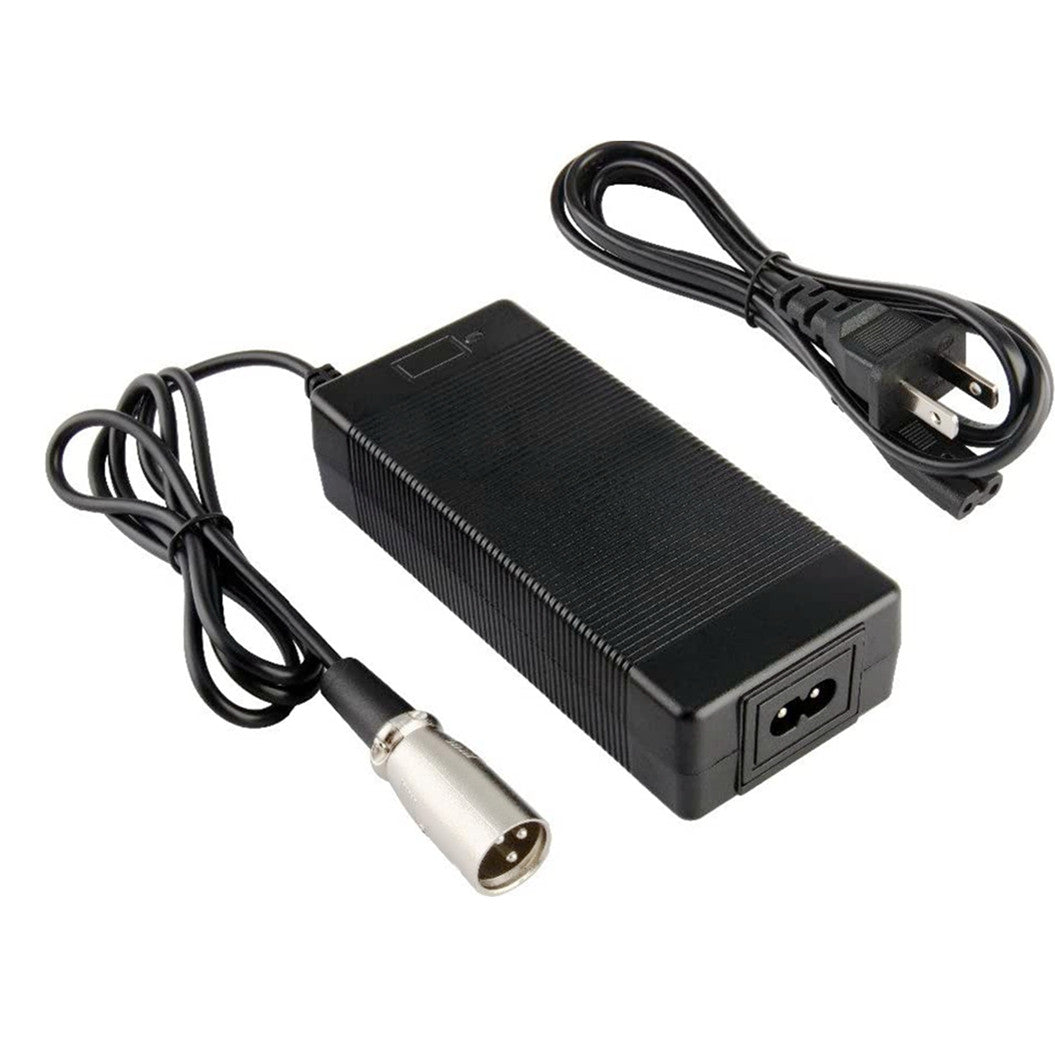

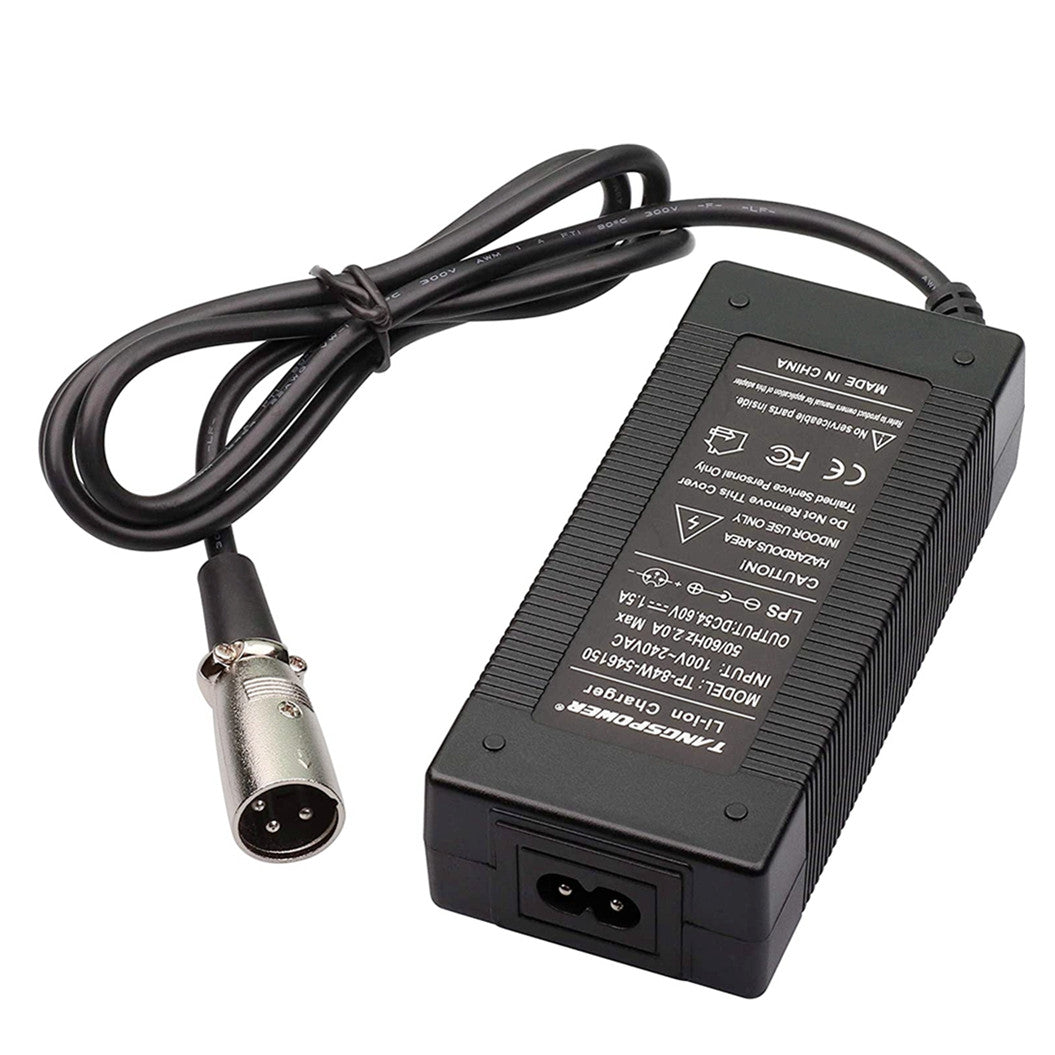

54.6 V Adapter Battery Charger 13S 48 V DC XLR Cinch Connection Socket for 48V 10Ah 12Ah 15Ah 20Ah


54.6 V Adapter Battery Charger 13S 48 V DC XLR Cinch Connection Socket for 48V 10Ah 12Ah 15Ah 20Ah


  • Output 54.6 V, worldwide input voltage 100-240 VAC 50/60 Hz
  • 105 ℃ output capacitor, globally applicable AC input voltage. 100% full load aging test, internal EMI filter, minimal ripple. The precision current between ± 0.1 A, the voltage tolerance is ± 0.1 V, absolutely no virtual marking.
  • The charger Built-in simple fan with a radiant fin that surrounds the circuit board and dissipates heat through the shell. So a bit hot on the case when charging is normal, but it will last a long time.
  • The charger protected: short circuit protection / overcurrent protection / overvoltage protection; red light - charging, green light - charging OK, it will stop automatically when the battery is full.
  • Replace your broken charger or add an extra charger to charge it in two places without taking the original charger with you

Product description:

  • Protection: short circuit / overload / overvoltage
  • LED indicator: Red: In charging status, Green: Fully charged
  • Loading mode: CC to CV
  • Usage: lithium charger
  • Input voltage: 100-240 V 50/60 Hz
  • Suitable voltage / frequency: 90-264 V 47/63 Hz
  • Output voltage: 54.6 V.
  • Output current: 1.5A / 3A (select)
  • Power: 81.9 W.
  • Productivity: 80%
  • Fluctuation / noise: <100MV
  • Working temperature: 0-40 ° C.
  • Storage temperature: -20-85 ° C.
  • Working nemi: 5% ~ 90% relative humidity
  • Storage humidity charger: 5% ~ 90% RH
  • Housing material: PC

Use and maintenance of the charger:

  • 1. When charging, connect the battery first, then connect it to the air conditioner After full, cut off AC, Then pull out the battery connector. If you pull the battery first when charging, especially when The charging current is high (red light), the charger can be damaged very easily.
  • 2. LED display after turning on green, then charge for 2-3 hours.
  • 3. Please do not run out of battery, then charger. Otherwise the battery cannot
  • protected or even damaged.
  • 4. Long-term flat discharge battery, approx. 3 months, for a deep discharge, is the so-called re-lighting, which is beneficial for the activation of long-term immobile material the deep part of the battery. Glowing means that the battery voltage of the controller is live Protective measure
  • 5. If your battery has not been used for a long time (2-3 months), please charge it the battery before use. Make sure your battery isn't dead.
  • 6.Please use the charger in a dry place in time.
  • 7.When you are not using the charger, do not always connect the AC adapter.
  • 8.Please confirm your battery as it is used to charge the lithium battery. Do not use the charger for the LiFepo4 battery, otherwise it will get incredibly hot.

The package includes:

  • 1x battery
